Linear Regression#

In this tutorial, we build a linear regression model with Liesel and estimate it with Goose. Our goal is to illustrate the most fundamental features of the software in a straight-forward context.

Imports#

Before we can generate the data and build the model, we need to load Liesel and a number of other packages. We usually import the model building library liesel.model as lsl, and the MCMC library liesel.goose as gs.

import jax
import jax.numpy as jnp
import numpy as np

# We use distributions and bijectors from tensorflow probability
import tensorflow_probability.substrates.jax.distributions as tfd
import tensorflow_probability.substrates.jax.bijectors as tfb

import liesel.goose as gs
import liesel.model as lsl

import matplotlib.pyplot as plt

Generating the data#

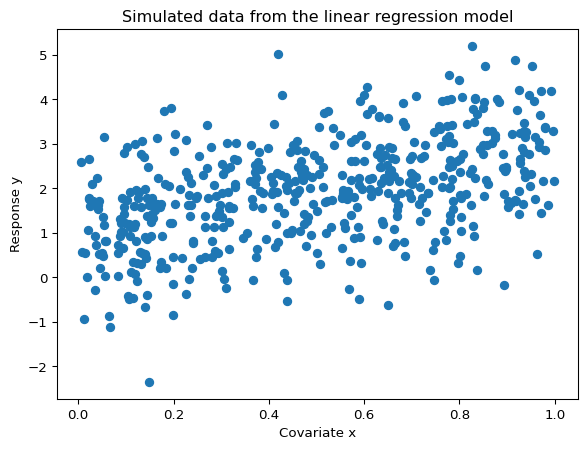

Now we can simulate 500 observations from the linear regression model \(y_i \sim \mathcal{N}(\beta_0 + \beta_1 x_i, \;\sigma^2)\) with the true parameters \(\boldsymbol{\beta} = (\beta_0, \beta_1)' = (1, 2)'\) and \(\sigma = 1\). The relationship between the response \(y_i\) and the covariate \(x_i\) is visualized in the following scatterplot.

rng = np.random.default_rng(42)

# sample size and true parameters
n = 500
true_beta = np.array([1.0, 2.0])
true_sigma = 1.0

# data-generating process
x0 = rng.uniform(size=n)
X_mat = np.column_stack([np.ones(n), x0])
eps = rng.normal(scale=true_sigma, size=n)
y_vec = X_mat @ true_beta + eps

# plot the simulated data
plt.scatter(x0, y_vec)
plt.title("Simulated data from the linear regression model")
plt.xlabel("Covariate x")
plt.ylabel("Response y")
plt.show()

../../_images/generate-data-output-1.png

Building the Model#

As the most basic building blocks of a model, Liesel provides the Var class for instantiating variables and the Dist class for wrapping probability distributions. The Var class comes with four constructors, namely Var.new_param() for parameters, Var.new_obs() for observed data, Var.new_calc() for variables that are deterministic functions of other variables in the model, and Var.new_value() for fixed values.

The regression coefficients#

Let’s assume the weakly informative prior \(\beta_0, \beta_1 \sim \mathcal{N}(0, 100^2)\) for the regression coefficients. To define this in Liesel, we will be using the Dist class. This class wraps distribution classes with the TensorFlow Probability (TFP) API. Here, we use the TFP distribution object (tfd.Normal), and the two hyperparameters representing the parameters of the distribution. TFP uses the names loc for the mean and scale for the standard deviation, so we have to use the same names here. This is a general feature of Dist, you should always use the parameter names from TFP to refer to the parameters of your distribution.

beta_prior = lsl.Dist(tfd.Normal, loc=0.0, scale=100.0)

Now we can create our regression coefficient with the Var.new_param() constructor. We also attach an MCMCSpec to beta, which tells Goose to sample this parameter with a NUTS kernel later on:

beta = lsl.Var.new_param(
    value=jnp.array([0.0, 0.0]),
    dist=beta_prior,
    name="beta",
    inference=gs.MCMCSpec(gs.NUTSKernel),
)

The variance and standard deviation#

We define the variance using the weakly informative prior \(\sigma^2 \sim \text{InverseGamma}(a, b)\) with \(a = b = 0.01\). In this introductory model, we do not attach an MCMC kernel to sigma_sq, so it remains fixed at its initial value during sampling.

sigma_sq_prior = lsl.Dist(tfd.InverseGamma, concentration=0.01, scale=0.01)
sigma_sq = lsl.Var.new_param(value=1.0, dist=sigma_sq_prior, name="sigma_sq")

Since we need to work not only with the variance, but with the scale, we initialize the scale using Var.new_calc(), to compute the square root.

sigma = lsl.Var.new_calc(jnp.sqrt, sigma_sq, name="sigma")

Design matrix, fitted values, and response#

To compute the matrix-vector product \(\mathbf{X}\boldsymbol{\beta}\), we use another variable instantiated via Var.new_calc(). We can view our model as \(y_i \sim \mathcal{N}(\mu_i, \;\sigma^2)\) with \(\mu_i = \beta_0 + \beta_1 x_i\), so we use the name mu for this product.

X = lsl.Var.new_obs(X_mat, name="X")
mu = lsl.Var.new_calc(jnp.dot, X, beta, name="mu")

At last we can define our response, using our observed response values. And since we assumed the model \(y_i \sim \mathcal{N}(\beta_0 + \beta_1 x_i, \;\sigma^2)\), we also need to specify the response’s distribution. We use our sigma and mu to specify this distribution:

y_dist = lsl.Dist(tfd.Normal, loc=mu, scale=sigma)
y = lsl.Var.new_obs(y_vec, dist=y_dist, name="y")

Bringing the model together#

Now, we can set up the Model. Here, we will only add the response.

model = lsl.Model(y)

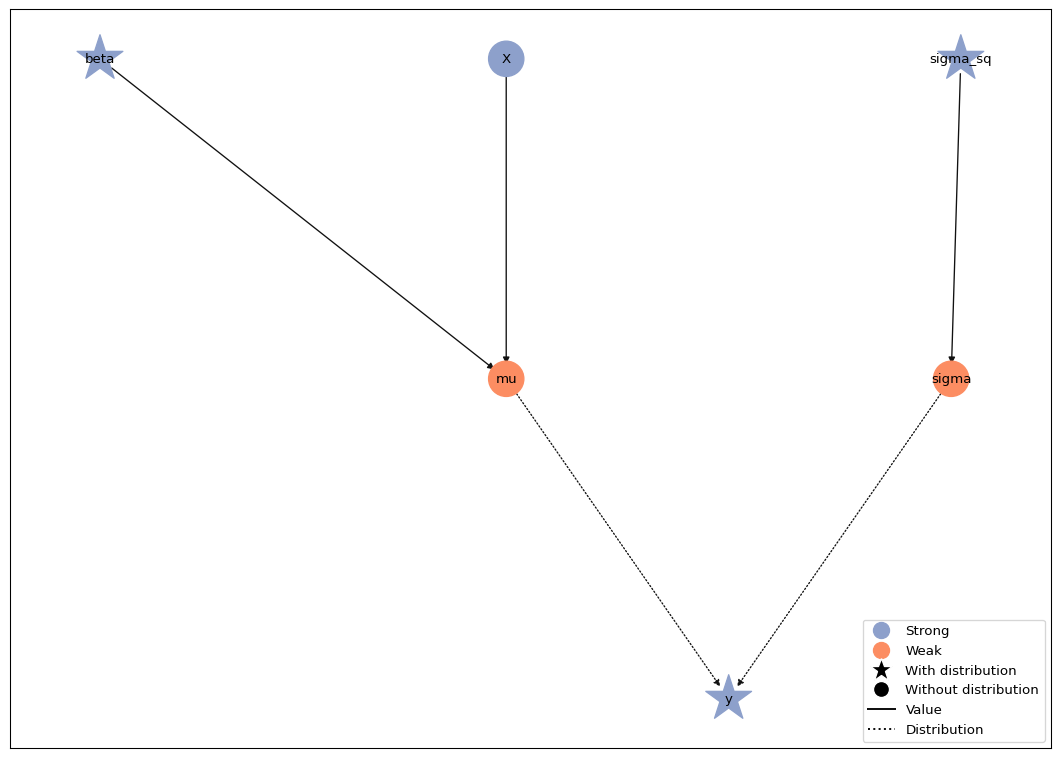

The Model.plot() method visualizes the model. If the layout of the graph looks messy for you, please make sure you have the pygraphviz package installed.

model.plot()

../../_images/plot-vars-output-1.png

MCMC inference with Goose#

This section illustrates the basics of Liesel’s MCMC framework Goose. To use Goose, the user needs to select one or more sampling algorithms, called (transition) kernels, for the model parameters. Goose comes with a number of standard kernels such as Hamiltonian Monte Carlo (HMCKernel) or the No U-Turn Sampler (NUTSKernel). Multiple kernels can be combined in one sampling scheme and assigned to different parameters, and the user can implement their own problem-specific kernels, as long as they are compatible with the Kernel protocol. In any case, the user is responsible for constructing a mathematically valid algorithm.

We start with a very simple sampling scheme, keeping \(\sigma^2\) fixed at its initial value and using a NUTS sampler for \(\boldsymbol{\beta}\). More on sampling \(\sigma^2\) can be found in the Parameter transformations tutorial and the Gibbs sampling tutorial. The NUTS kernel for beta was specified above through the variable’s inference attribute. The LieselMCMC helper reads these inference specifications from the model and can run the sampler directly with run_for_epochs(). Here we request 1000 adaptation iterations and 1000 posterior draws per chain.

results = gs.LieselMCMC(model).run_for_epochs(
    seed=1337, num_chains=4, adaptation=1000, posterior=1000
)

liesel.goose.mcmc_spec - WARNING - No inference specification defined for Var(name="sigma_sq"). If you do not add a kernel for this parameter manually to an EngineBuilder, it will not be sampled.
liesel.goose.builder - WARNING - No jitter functions provided for position keys 'beta'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Starting epoch: FAST_ADAPTATION, 100 transitions, 25 jitted together
  0%|                                                  | 0/4 [00:00<?, ?chunk/s] 25%|██████████▌                               | 1/4 [00:01<00:03,  1.27s/chunk]100%|██████████████████████████████████████████| 4/4 [00:01<00:00,  3.15chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 2, 2, 5, 4 / 100 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 25 transitions, 25 jitted together
  0%|                                                  | 0/1 [00:00<?, ?chunk/s]100%|████████████████████████████████████████| 1/1 [00:00<00:00, 1300.16chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 3, 1, 2, 2 / 25 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 50 transitions, 25 jitted together
  0%|                                                  | 0/2 [00:00<?, ?chunk/s]100%|████████████████████████████████████████| 2/2 [00:00<00:00, 1932.41chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 1, 1, 1, 2 / 50 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 100 transitions, 25 jitted together
  0%|                                                  | 0/4 [00:00<?, ?chunk/s]100%|████████████████████████████████████████| 4/4 [00:00<00:00, 2713.44chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 2, 1, 1, 3 / 100 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 525 transitions, 25 jitted together
  0%|                                                 | 0/21 [00:00<?, ?chunk/s]100%|███████████████████████████████████████| 21/21 [00:00<00:00, 455.04chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 4, 2, 1, 3 / 525 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: FAST_ADAPTATION, 200 transitions, 25 jitted together
  0%|                                                  | 0/8 [00:00<?, ?chunk/s]100%|████████████████████████████████████████| 8/8 [00:00<00:00, 1650.49chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 3, 3, 4, 3 / 200 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Finished warmup
liesel.goose.engine - INFO - Starting epoch: POSTERIOR, 1000 transitions, 25 jitted together
  0%|                                                 | 0/40 [00:00<?, ?chunk/s]100%|███████████████████████████████████████| 40/40 [00:00<00:00, 440.10chunk/s]
liesel.goose.engine - INFO - Finished epoch

The call to run_for_epochs() builds the engine, compiles the model and sampling algorithm, runs all epochs, and returns the sampling results. Finally, we print a summary table.

summary = gs.Summary(results)
summary

Parameter summary:

		kernel	mean	sd	q_0.05	q_0.5	q_0.95	sample_size	ess_bulk	ess_tail	rhat
parameter	index
beta	(0,)	kernel_00	0.984	0.088	0.838	0.985	1.126	4000	1151.201	1385.802	1.002
beta	(1,)	kernel_00	1.906	0.154	1.648	1.907	2.156	4000	1199.216	1432.785	1.003

Acceptance probabilities:

			acceptance_probability	position_moved
kernel	positions	phase
kernel_00	beta	posterior	0.877	NaN
kernel_00	beta	warmup	0.791	NaN

Error summary:

					count	sample_size	sample_size_total	relative
kernel	positions	error_code	error_msg	phase
kernel_00	beta	1	divergent transition	warmup	56	4000	4000	0.014
kernel_00	beta	1	divergent transition	posterior	0	4000	4000	0.000

Here, we end this first tutorial. We have learned how to build a linear regression model, attach a NUTS kernel through an inference specification, and draw MCMC samples - that is quite a bit for the start. Now, have fun modelling with Liesel!
