Comparing samplers

In this tutorial, we compare two different sampling schemes on the mcycle dataset with a Gaussian location-scale regression model and two splines for the mean and the standard deviation. The mcycle dataset is a “data frame giving a series of measurements of head acceleration in a simulated motorcycle accident, used to test crash helmets” (from the help page). It contains the following two variables:

• times: in milliseconds after impact

• accel: in g

We set up the model in Python with Liesel-GAM, using liesel_gam.TermBuilder for the P-spline terms. See the Liesel-GAM documentation and examples for more information about additive terms and predictors. We load the data set from R with ryp and then continue with a pure Python model specification and sampling workflow.

from pathlib import Path

import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import tensorflow_probability.substrates.jax.bijectors as tfb
import tensorflow_probability.substrates.jax.distributions as tfd

import liesel.goose as gs
import liesel.model as lsl
import liesel_gam as gam
from ryp import r, to_py

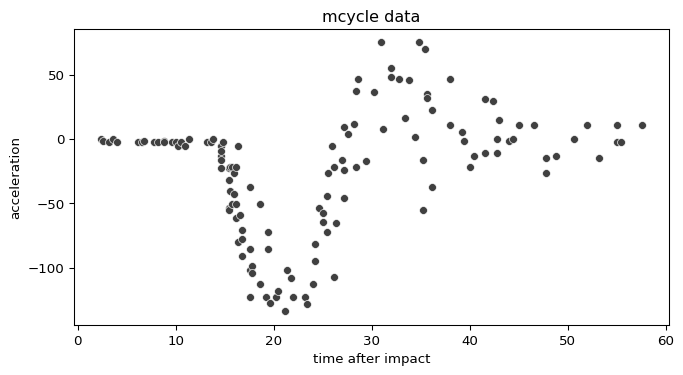

We start by loading the data set from the R package MASS and converting it to a pandas data frame.

r("library(MASS)")
r("data(mcycle); mcycle <- as.data.frame(mcycle)")

mcycle = to_py("mcycle", format="pandas")

fig, ax = plt.subplots(figsize=(8, 4))
sns.scatterplot(data=mcycle, x="times", y="accel", color="0.25", s=35, ax=ax)
ax.set(xlabel="time after impact", ylabel="acceleration", title="mcycle data")
plt.show()

Next, we build the Gaussian location-scale model. Both distributional parameters use an additive predictor with an intercept and a P-spline in times. The scale predictor uses an exponential inverse link to keep the standard deviation positive. The TermBuilder is initialized with an IWLS MCMC specification, so the P-spline regression coefficients are sampled with IWLS kernels by default. The additive predictor intercepts also use their default IWLS inference specification. The smoothing variances of the P-splines receive Gibbs kernels automatically.

tb = gam.TermBuilder.from_df(mcycle, default_inference=gs.MCMCSpec(gs.IWLSKernel))

loc = gam.AdditivePredictor("loc")
scale = gam.AdditivePredictor("scale", inv_link=jnp.exp)

loc_smooth = tb.ps("times", k=20, prefix="loc.")
scale_smooth = tb.ps("times", k=20, prefix="scale.")

loc += loc_smooth
scale += scale_smooth

response_dist = lsl.Dist(tfd.Normal, loc=loc, scale=scale)
y = lsl.Var.new_obs(mcycle["accel"], response_dist, name="y")
model = lsl.Model(y)

Metropolis-in-Gibbs

First, we run the model with the inference specifications attached during model construction. This gives a Metropolis-in-Gibbs sampling scheme with IWLS kernels for the regression coefficients (\(\boldsymbol{\beta}\)) and Gibbs kernels for the smoothing variances (\(\tau^2\)) of the splines.

iwls_results = gs.LieselMCMC(model).run_for_epochs(
    seed=1, num_chains=4, adaptation=1000, posterior=10000, posterior_thinning=10, show_progress=False
)

liesel.goose.builder - WARNING - No jitter functions provided for position keys '$\\beta_{loc.ps(times)}$', '$\\beta_{scale.ps(times)}$', '$\\tau_{loc.ps(times)}^2$', '$\\beta_{0,loc}$', '$\\tau_{scale.ps(times)}^2$', '$\\beta_{0,scale}$'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Finished warmup

Clearly, the performance of the sampler could be better, especially for the intercept of the mean. The corresponding chain exhibits a very strong autocorrelation.

gs.Summary(iwls_results)

Parameter summary:

		kernel	mean	sd	q_0.05	q_0.5	q_0.95	sample_size	ess_bulk	ess_tail	rhat
parameter	index
\(\beta_{0,loc}\)	()	kernel_03	-25.231	1.982	-28.440	-25.266	-21.932	4000	91.735	99.749	1.043
\(\beta_{0,scale}\)	()	kernel_05	2.724	0.075	2.601	2.723	2.853	4000	1240.162	2309.053	1.002
\(\beta_{loc.ps(times)}\)	(0,)	kernel_00	2.389	10.804	-15.710	2.433	19.814	4000	2745.445	3217.044	1.000
	(1,)	kernel_00	11.079	10.199	-4.826	10.582	28.691	4000	2502.842	3212.205	1.000
	(2,)	kernel_00	1.566	9.327	-13.700	1.507	17.078	4000	2734.069	3514.793	1.000
	(3,)	kernel_00	-3.259	8.896	-18.092	-3.024	10.990	4000	3171.874	3456.306	1.001
	(4,)	kernel_00	-9.310	8.856	-24.442	-9.072	4.528	4000	3452.395	3637.538	1.001
	(5,)	kernel_00	-10.120	8.434	-24.343	-9.852	3.212	4000	2684.143	3569.892	1.001
	(6,)	kernel_00	0.110	7.682	-12.099	-0.028	12.989	4000	2973.361	2888.397	1.003
	(7,)	kernel_00	-0.425	7.055	-12.029	-0.529	11.258	4000	3317.425	3522.206	1.000
	(8,)	kernel_00	10.682	6.637	-0.434	10.657	21.660	4000	3410.736	3716.644	1.000
	(9,)	kernel_00	-15.615	5.729	-25.140	-15.519	-6.263	4000	2888.242	2849.860	1.001
	(10,)	kernel_00	7.597	4.886	-0.181	7.516	15.832	4000	2699.041	3273.765	1.001
	(11,)	kernel_00	-23.715	4.428	-31.150	-23.687	-16.500	4000	3119.502	3535.451	1.000
	(12,)	kernel_00	9.336	3.280	4.172	9.334	14.651	4000	3325.456	3589.285	1.001
	(13,)	kernel_00	-10.207	2.583	-14.431	-10.168	-6.068	4000	3216.028	3244.630	1.001
	(14,)	kernel_00	12.242	1.877	9.184	12.259	15.173	4000	3356.569	3364.785	1.001
	(15,)	kernel_00	2.242	1.235	0.189	2.249	4.188	4000	1827.116	2513.063	1.003
	(16,)	kernel_00	-3.139	0.646	-4.195	-3.124	-2.139	4000	3279.625	3283.467	1.001
	(17,)	kernel_00	0.912	0.242	0.524	0.919	1.291	4000	943.454	2046.986	1.004
	(18,)	kernel_00	2.983	0.925	1.523	3.007	4.375	4000	3234.198	2806.174	1.002
\(\beta_{scale.ps(times)}\)	(0,)	kernel_01	0.011	0.145	-0.213	0.005	0.256	4000	1157.099	1448.394	1.005
	(1,)	kernel_01	-0.024	0.149	-0.280	-0.016	0.198	4000	1200.021	1000.396	1.005
	(2,)	kernel_01	0.006	0.142	-0.215	0.002	0.238	4000	1351.423	1157.364	1.005
	(3,)	kernel_01	0.026	0.142	-0.194	0.022	0.264	4000	1183.395	1030.918	1.006
	(4,)	kernel_01	0.031	0.146	-0.191	0.022	0.284	4000	1099.421	722.438	1.007
	(5,)	kernel_01	-0.033	0.144	-0.272	-0.025	0.191	4000	1001.900	985.622	1.005
	(6,)	kernel_01	-0.056	0.145	-0.309	-0.043	0.159	4000	1086.999	1004.761	1.003
	(7,)	kernel_01	-0.017	0.133	-0.238	-0.015	0.196	4000	1058.990	1067.830	1.007
	(8,)	kernel_01	0.103	0.147	-0.100	0.080	0.374	4000	664.293	1027.972	1.011
	(9,)	kernel_01	-0.094	0.133	-0.324	-0.081	0.095	4000	870.111	1235.133	1.005
	(10,)	kernel_01	-0.116	0.120	-0.323	-0.108	0.059	4000	1030.726	1390.782	1.004
	(11,)	kernel_01	0.008	0.112	-0.169	0.011	0.185	4000	1044.794	1269.849	1.004
	(12,)	kernel_01	0.202	0.126	0.027	0.185	0.432	4000	435.379	606.760	1.011
	(13,)	kernel_01	0.138	0.099	-0.009	0.131	0.306	4000	625.898	1139.024	1.003
	(14,)	kernel_01	-0.079	0.085	-0.228	-0.072	0.046	4000	569.673	851.310	1.006
	(15,)	kernel_01	0.044	0.056	-0.039	0.039	0.138	4000	676.537	1207.682	1.005
	(16,)	kernel_01	0.026	0.032	-0.027	0.028	0.074	4000	582.852	778.132	1.014
	(17,)	kernel_01	-0.063	0.012	-0.081	-0.064	-0.042	4000	657.701	1249.209	1.007
	(18,)	kernel_01	0.111	0.048	0.033	0.111	0.191	4000	735.290	1102.061	1.013
\(\tau_{loc.ps(times)}^2\)	()	kernel_02	137.231	66.379	61.990	122.915	262.839	4000	2799.840	3249.357	1.000
\(\tau_{scale.ps(times)}^2\)	()	kernel_04	0.022	0.021	0.003	0.016	0.060	4000	303.019	492.178	1.021

Acceptance probabilities:

			acceptance_probability	position_moved
kernel	positions	phase
kernel_00	\(\beta_{loc.ps(times)}\)	posterior	0.863	0.863
		warmup	0.794	0.793
kernel_01	\(\beta_{scale.ps(times)}\)	posterior	0.847	0.848
		warmup	0.793	0.790
kernel_02	\(\tau_{loc.ps(times)}^2\)	posterior	1.000	1.000
		warmup	1.000	1.000
kernel_03	\(\beta_{0,loc}\)	posterior	0.922	0.923
		warmup	0.923	0.927
kernel_04	\(\tau_{scale.ps(times)}^2\)	posterior	1.000	1.000
		warmup	1.000	1.000
kernel_05	\(\beta_{0,scale}\)	posterior	0.906	0.905
		warmup	0.912	0.909

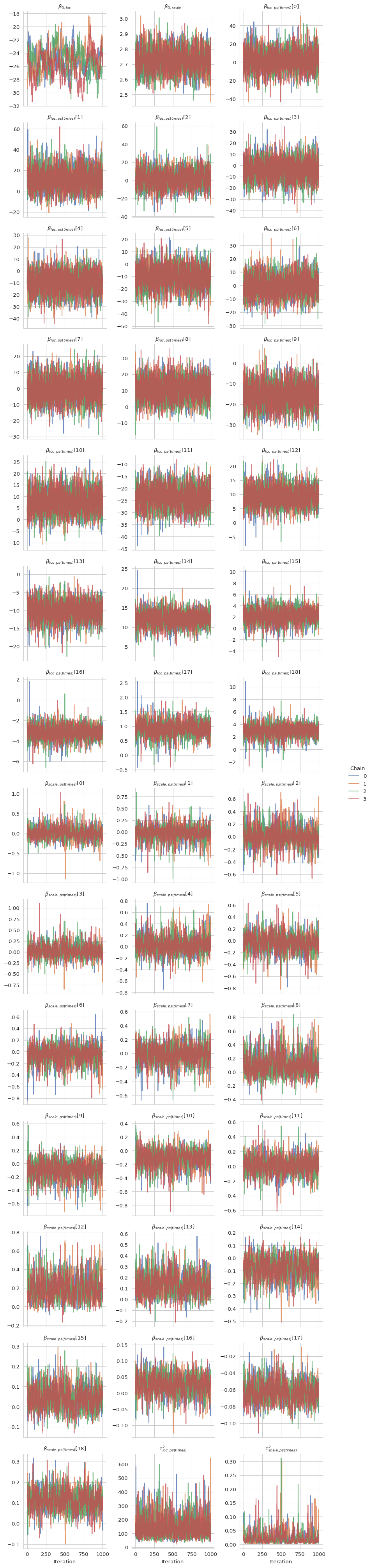

gs.plot_trace(iwls_results)

To confirm that the chains have converged to reasonable values, we plot the posterior mean of the location predictor together with a 90% credible interval:

def plot_loc_estimate(results, model, title):
    samples = results.get_posterior_samples()
    loc_samples = model.vars["loc"].predict(samples)
    loc_summary = gs.SamplesSummary.from_array(
        loc_samples,
        name="loc",
        which=["mean", "quantiles"],
    )
    loc_summary_df = loc_summary.to_dataframe().reset_index()

    loc_summary_df["times"] = mcycle["times"].to_numpy()
    plot_data = (
        loc_summary_df[["times", "mean", "q_0.05", "q_0.95"]]
        .groupby("times", as_index=False)
        .mean()
        .sort_values("times")
    )

    fig, ax = plt.subplots(figsize=(8, 5))
    ax.fill_between(
        plot_data["times"],
        plot_data["q_0.05"],
        plot_data["q_0.95"],
        color=sns.color_palette()[1],
        alpha=0.25,
        label="90% credible interval",
    )
    sns.lineplot(
        data=plot_data,
        x="times",
        y="mean",
        color=sns.color_palette()[1],
        linewidth=2,
        label="posterior mean",
        ax=ax,
    )
    sns.scatterplot(
        data=mcycle,
        x="times",
        y="accel",
        color="0.25",
        s=25,
        ax=ax,
        label="observed data",
    )
    ax.set(xlabel="time after impact", ylabel="acceleration", title=title)
    plt.show()

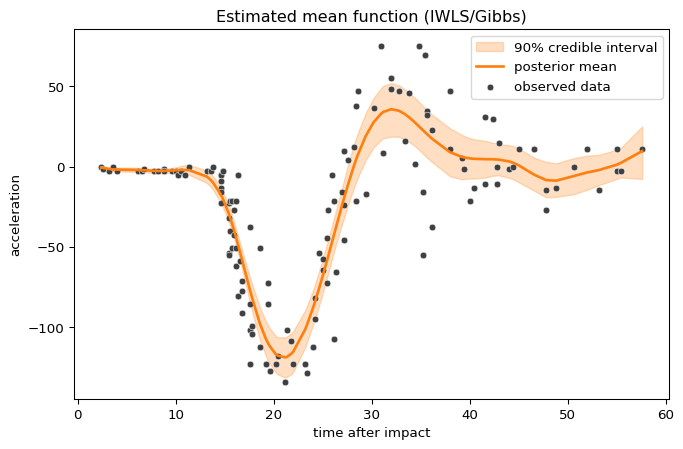

plot_loc_estimate(iwls_results, model, "Estimated mean function (IWLS/Gibbs)")

NUTS sampler

As an alternative, we use NUTS kernels for the spline-specific parameter blocks. The helper below copies the model graph, log-transforms the smoothing variances by bijecting them with an exponential bijector, and assigns one NUTS kernel group per additive term.

def strategy_term_blocked(
    model: lsl.Model, predictors: list[str], kernel_constructor, **kwargs
):
    model = model.copy()
    for k, v in model.parameters.items():
        if "tau" in k:
            v.biject(tfb.Exp(), inference="drop")

    for predictor_name in predictors:
        predictor = model.vars[predictor_name]
        if predictor.intercept:
            predictor.intercept.inference = gs.MCMCSpec(
                kernel_constructor, kernel_kwargs=kwargs
            )

        for term in predictor.terms.values():
            for param in model.parental_submodel(term).parameters.values():
                model.parameters[param.name].inference = gs.MCMCSpec(
                    kernel_constructor, kernel_group=term.name, kernel_kwargs=kwargs
                )

    return model

nuts_model = strategy_term_blocked(model, ["loc", "scale"], gs.NUTSKernel)

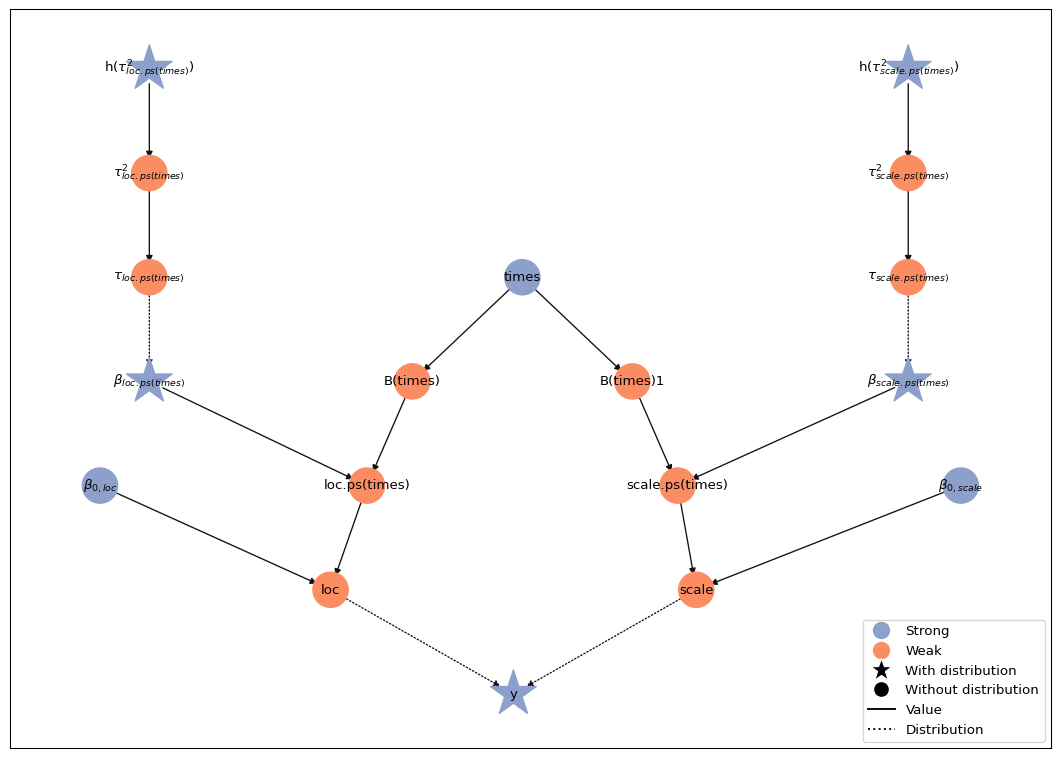

The resulting model contains transformed smoothing variances on the unconstrained log scale. Here is the transformed model graph:

nuts_model.plot()

Now we can run the sampler from the MCMCSpec objects stored in the model. In complex models like this one, it can be beneficial to sample the parameters of each additive term in a separate NUTS block.

nuts_results = gs.LieselMCMC(nuts_model).run_for_epochs(
    seed=1, num_chains=4, adaptation=1000, posterior=1000, show_progress=False
)

liesel.goose.builder - WARNING - No jitter functions provided for position keys '$\\beta_{loc.ps(times)}$', 'h($\\tau_{loc.ps(times)}^2$)', '$\\beta_{scale.ps(times)}$', 'h($\\tau_{scale.ps(times)}^2$)', '$\\beta_{0,loc}$', '$\\beta_{0,scale}$'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Finished warmup

The blocked NUTS strategy overall seems to do a good job and can yield higher effective sample sizes than the IWLS sampler, especially for the spline coefficients of the scale model.

gs.Summary(nuts_results)

Parameter summary:

		kernel	mean	sd	q_0.05	q_0.5	q_0.95	sample_size	ess_bulk	ess_tail	rhat
parameter	index
\(\beta_{0,loc}\)	()	kernel_02	-25.157	2.255	-29.277	-25.095	-21.618	4000	13.116	15.298	1.240
\(\beta_{0,scale}\)	()	kernel_03	2.723	0.076	2.603	2.720	2.851	4000	675.615	1260.077	1.004
\(\beta_{loc.ps(times)}\)	(0,)	kernel_00	2.682	10.627	-14.695	2.687	19.847	4000	4064.084	2753.618	1.001
	(1,)	kernel_00	11.372	10.339	-4.712	10.733	29.440	4000	2718.144	2039.869	1.003
	(2,)	kernel_00	1.461	9.325	-14.031	1.412	16.753	4000	3319.317	2426.635	1.002
	(3,)	kernel_00	-3.353	8.916	-17.948	-3.249	11.335	4000	3185.618	2749.068	1.002
	(4,)	kernel_00	-9.362	8.880	-24.667	-9.085	4.699	4000	3058.779	2325.766	1.001
	(5,)	kernel_00	-10.313	8.543	-24.531	-10.120	3.330	4000	2856.079	2586.780	1.001
	(6,)	kernel_00	0.566	7.934	-12.275	0.369	13.514	4000	2530.758	2844.444	1.002
	(7,)	kernel_00	-0.235	7.445	-12.426	-0.319	12.225	4000	2481.104	2443.635	1.001
	(8,)	kernel_00	10.731	6.754	-0.296	10.691	22.074	4000	2269.861	2242.519	1.002
	(9,)	kernel_00	-15.589	5.883	-25.395	-15.445	-6.031	4000	1590.324	2105.093	1.003
	(10,)	kernel_00	7.504	4.913	-0.469	7.489	15.721	4000	1014.294	1676.991	1.004
	(11,)	kernel_00	-23.858	4.530	-31.420	-23.791	-16.633	4000	1352.847	1894.121	1.002
	(12,)	kernel_00	9.164	3.213	3.938	9.161	14.466	4000	1170.496	1725.139	1.006
	(13,)	kernel_00	-10.156	2.535	-14.347	-10.178	-6.043	4000	1191.233	1847.846	1.005
	(14,)	kernel_00	12.291	1.875	9.226	12.301	15.349	4000	1192.178	1541.098	1.004
	(15,)	kernel_00	2.294	1.234	0.292	2.276	4.301	4000	522.760	1089.537	1.012
	(16,)	kernel_00	-3.120	0.627	-4.142	-3.120	-2.098	4000	989.886	1481.136	1.005
	(17,)	kernel_00	0.914	0.246	0.510	0.917	1.307	4000	96.340	863.558	1.037
	(18,)	kernel_00	3.011	0.907	1.557	3.008	4.498	4000	928.757	1363.198	1.004
\(\beta_{scale.ps(times)}\)	(0,)	kernel_01	0.001	0.141	-0.219	0.001	0.217	4000	4692.991	1962.539	1.002
	(1,)	kernel_01	-0.024	0.143	-0.273	-0.016	0.192	4000	4934.493	1801.269	1.003
	(2,)	kernel_01	0.011	0.146	-0.211	0.007	0.251	4000	5073.525	1989.663	1.005
	(3,)	kernel_01	0.029	0.142	-0.186	0.022	0.264	4000	4361.999	1997.520	1.001
	(4,)	kernel_01	0.026	0.144	-0.192	0.020	0.257	4000	4809.598	1909.172	1.003
	(5,)	kernel_01	-0.032	0.144	-0.281	-0.026	0.188	4000	5427.737	1621.686	1.003
	(6,)	kernel_01	-0.056	0.143	-0.302	-0.046	0.156	4000	3333.762	1551.118	1.000
	(7,)	kernel_01	-0.012	0.132	-0.225	-0.009	0.196	4000	4524.246	2200.880	1.003
	(8,)	kernel_01	0.093	0.145	-0.109	0.075	0.361	4000	1907.307	1375.404	1.002
	(9,)	kernel_01	-0.090	0.125	-0.308	-0.076	0.090	4000	2468.683	2047.995	1.003
	(10,)	kernel_01	-0.120	0.122	-0.337	-0.107	0.057	4000	2564.739	2204.354	1.002
	(11,)	kernel_01	0.009	0.114	-0.181	0.009	0.195	4000	3307.058	2243.883	1.002
	(12,)	kernel_01	0.204	0.122	0.028	0.193	0.421	4000	814.724	1340.109	1.003
	(13,)	kernel_01	0.138	0.100	-0.009	0.133	0.309	4000	1246.340	1565.672	1.002
	(14,)	kernel_01	-0.083	0.085	-0.231	-0.078	0.043	4000	971.161	1790.243	1.002
	(15,)	kernel_01	0.044	0.058	-0.044	0.040	0.145	4000	1184.525	1425.558	1.004
	(16,)	kernel_01	0.024	0.033	-0.033	0.026	0.074	4000	1052.191	1817.478	1.004
	(17,)	kernel_01	-0.063	0.013	-0.083	-0.063	-0.040	4000	1309.675	1534.598	1.001
	(18,)	kernel_01	0.108	0.049	0.026	0.109	0.187	4000	1391.988	1917.419	1.004
h(\(\tau_{loc.ps(times)}^2\))	()	kernel_00	4.835	0.440	4.135	4.827	5.593	4000	1654.489	1923.113	1.001
h(\(\tau_{scale.ps(times)}^2\))	()	kernel_01	-4.184	0.841	-5.620	-4.138	-2.859	4000	363.985	693.435	1.006

Acceptance probabilities:

			acceptance_probability	position_moved
kernel	positions	phase
kernel_00	\(\beta_{loc.ps(times)}\), h(\(\tau_{loc.ps(times)}^2\))	posterior	0.892	NaN
		warmup	0.793	NaN
kernel_01	\(\beta_{scale.ps(times)}\), h(\(\tau_{scale.ps(times)}^2\))	posterior	0.876	NaN
		warmup	0.794	NaN
kernel_02	\(\beta_{0,loc}\)	posterior	0.862	NaN
		warmup	0.791	NaN
kernel_03	\(\beta_{0,scale}\)	posterior	0.875	NaN
		warmup	0.793	NaN

Error summary:

					count	sample_size	sample_size_total	relative
kernel	positions	error_code	error_msg	phase
kernel_00	\(\beta_{loc.ps(times)}\), h(\(\tau_{loc.ps(times)}^2\))	1	divergent transition	warmup	364	4000	4000	0.091
				posterior	18	4000	4000	0.004
		2	maximum tree depth	warmup	393	4000	4000	0.098
				posterior	0	4000	4000	0.000
kernel_01	\(\beta_{scale.ps(times)}\), h(\(\tau_{scale.ps(times)}^2\))	1	divergent transition	warmup	272	4000	4000	0.068
				posterior	0	4000	4000	0.000
		2	maximum tree depth	warmup	8	4000	4000	0.002
				posterior	0	4000	4000	0.000
kernel_02	\(\beta_{0,loc}\)	1	divergent transition	warmup	75	4000	4000	0.019
				posterior	0	4000	4000	0.000
kernel_03	\(\beta_{0,scale}\)	1	divergent transition	warmup	36	4000	4000	0.009
				posterior	0	4000	4000	0.000

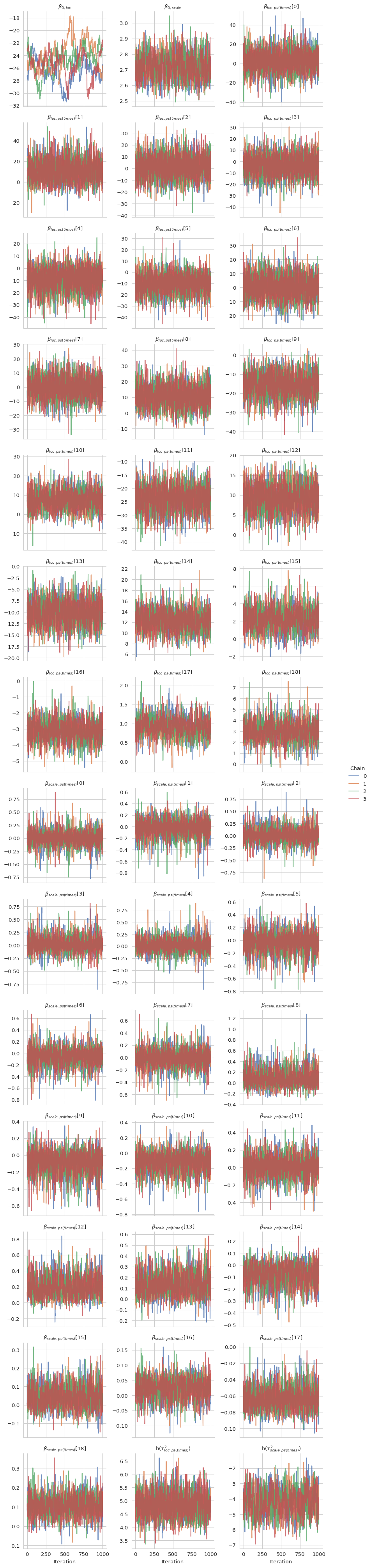

gs.plot_trace(nuts_results)

Again, here is the posterior mean function with a 90% credible interval:

plot_loc_estimate(nuts_results, nuts_model, "Estimated mean function (NUTS)")
