GEV responses

In this tutorial, we illustrate how to set up a distributional regression model with the generalized extreme value distribution as a response distribution. We configure the model in Python with Liesel-GAM, using liesel_gam.TermBuilder for linear terms and P-splines. See the Liesel-GAM documentation and examples for a broader overview of the available term types.

We simulate data from a GEV model with three distributional parameters:

• The location parameter (\(\mu\)) is a function of an intercept and a non-linear covariate effect.

• The scale parameter (\(\sigma\)) is a function of an intercept and a linear effect and uses a log-link.

• The shape or concentration parameter (\(\xi\)) is a function of an intercept and a linear effect.

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np
import seaborn as sns
import tensorflow_probability.substrates.jax.distributions as tfd

import liesel.goose as gs
import liesel.model as lsl
import liesel_gam as gam

sns.set_theme(style="whitegrid")

key = jax.random.PRNGKey(13)
n = 500

key, key_x0, key_x1, key_x2, key_y = jax.random.split(key, 5)

x0 = jax.random.uniform(key_x0, (n,))
x1 = jax.random.uniform(key_x1, (n,))
x2 = jax.random.uniform(key_x2, (n,))

true_loc = jnp.sin(2 * jnp.pi * x0)
true_scale = jnp.exp(-1.0 + x1)
true_concentration = 0.1 + x2

y = tfd.GeneralizedExtremeValue(
    loc=true_loc,
    scale=true_scale,
    concentration=true_concentration,
).sample(seed=key_y)

data = pd.DataFrame({
    "y": np.asarray(y),
    "intercept": np.ones_like(y),
    "x0": np.asarray(x0),
    "x1": np.asarray(x1),
    "x2": np.asarray(x2),
    "true_loc": np.asarray(true_loc),
    "true_scale": np.asarray(true_scale),
    "true_concentration": np.asarray(true_concentration),
})

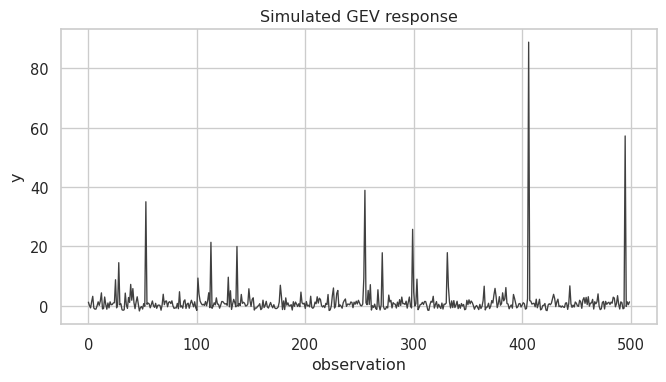

Here is the simulated response:

fig, ax = plt.subplots(figsize=(8, 4))
sns.lineplot(x=data.index, y=data["y"], ax=ax, color="0.25", linewidth=1)
ax.set(xlabel="observation", ylabel="y", title="Simulated GEV response")
plt.show()

We now construct the distributional regression model. The TermBuilder reads the covariates from a pandas data frame and creates Liesel variables for the corresponding model terms. The additive predictors are passed directly to tfd.GeneralizedExtremeValue.

tb = gam.TermBuilder.from_df(data, default_inference=gs.MCMCSpec(gs.IWLSKernel))

loc = gam.AdditivePredictor("loc", intercept=True)
scale = gam.AdditivePredictor("scale", inv_link=jnp.exp, intercept=False)
concentration = gam.AdditivePredictor("concentration", intercept=False)

loc_smooth = tb.ps("x0", k=10)
scale_x1 = tb.lin("intercept + x1")
concentration_x2 = tb.lin("intercept + x2")

loc += loc_smooth
scale += scale_x1
concentration += concentration_x2

# The GEV distribution is numerically delicate around xi = 0, so we start away
# from the Gumbel case while keeping the linear effect initialized at zero.
concentration_x2.coef.value = jnp.array([0.1, 0.0])
concentration.update()

response_dist = lsl.Dist(
    tfd.GeneralizedExtremeValue,
    loc=loc,
    scale=scale,
    concentration=concentration,
)
y_var = lsl.Var.new_obs(data["y"].to_numpy(), response_dist, name="y")

model = lsl.Model([y_var])

# ScaleIG represents tau = sqrt(tau2). The Gibbs kernel samples tau2.
loc_smooth_tau2_name = loc_smooth.scale.value_node[0].name

We use Liesel’s MCMCSpec objects, which are added automatically by Liesel-GAM, to set up the sampler. The default Liesel-GAM setup uses IWLS kernels for regression coefficients and a Gibbs kernel for the smoothing variance of the P-spline.

The support of the GEV distribution changes with the parameter values (compare Wikipedia).

results = gs.LieselMCMC(model).run_for_epochs(
    seed=1, num_chains=4, adaptation=1000, posterior=2500
)
gs.Summary(results)

liesel.goose.builder - WARNING - No jitter functions provided for position keys '$\\beta_{ps(x0)}$', '$\\tau_{ps(x0)}^2$', '$\\beta_{0,loc}$', '$\\beta_{lin(X)}$', '$\\beta_{lin(X1)}$'. The initial values for these keys won't be jittered
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
liesel.goose.engine - INFO - Starting epoch: FAST_ADAPTATION, 100 transitions, 25 jitted together

  0%|                                                  | 0/4 [00:00<?, ?chunk/s]
 25%|██████████▌                               | 1/4 [00:07<00:23,  8.00s/chunk]
100%|██████████████████████████████████████████| 4/4 [00:07<00:00,  2.00s/chunk]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 1, 1, 1, 1 / 100 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 1, 1, 0, 2 / 100 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 3, 2, 2, 3 / 100 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 25 transitions, 25 jitted together

  0%|                                                  | 0/1 [00:00<?, ?chunk/s]
100%|█████████████████████████████████████████| 1/1 [00:00<00:00, 655.56chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 1, 2, 1, 1 / 25 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 0, 1, 0, 1 / 25 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 1, 2, 1, 1 / 25 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 50 transitions, 25 jitted together

  0%|                                                  | 0/2 [00:00<?, ?chunk/s]
100%|█████████████████████████████████████████| 2/2 [00:00<00:00, 869.56chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 1, 1, 1, 0 / 50 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 2, 0, 0, 2 / 50 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 1, 3, 1, 2 / 50 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 100 transitions, 25 jitted together

  0%|                                                  | 0/4 [00:00<?, ?chunk/s]
100%|█████████████████████████████████████████| 4/4 [00:00<00:00, 833.11chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 0, 1, 1, 1 / 100 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 2, 0, 1, 2 / 100 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 3, 1, 2, 1 / 100 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 525 transitions, 25 jitted together

  0%|                                                 | 0/21 [00:00<?, ?chunk/s]
 62%|████████████████████████▏              | 13/21 [00:00<00:00, 128.65chunk/s]
100%|████████████████████████████████████████| 21/21 [00:00<00:00, 91.13chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 2, 3, 1, 2 / 525 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 2, 3, 1, 1 / 525 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 6, 5, 6, 4 / 525 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: FAST_ADAPTATION, 200 transitions, 25 jitted together

  0%|                                                  | 0/8 [00:00<?, ?chunk/s]
100%|█████████████████████████████████████████| 8/8 [00:00<00:00, 419.12chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 2, 1, 1, 1 / 200 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 2, 3, 3, 3 / 200 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 4, 4, 3, 3 / 200 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Finished warmup
liesel.goose.engine - INFO - Starting epoch: POSTERIOR, 2500 transitions, 25 jitted together

  0%|                                                | 0/100 [00:00<?, ?chunk/s]
 13%|████▉                                 | 13/100 [00:00<00:00, 125.59chunk/s]
 26%|██████████▏                            | 26/100 [00:00<00:00, 78.75chunk/s]
 35%|█████████████▋                         | 35/100 [00:00<00:00, 71.65chunk/s]
 43%|████████████████▊                      | 43/100 [00:00<00:00, 68.22chunk/s]
 51%|███████████████████▉                   | 51/100 [00:00<00:00, 65.99chunk/s]
 58%|██████████████████████▌                | 58/100 [00:00<00:00, 64.71chunk/s]
 65%|█████████████████████████▎             | 65/100 [00:00<00:00, 63.85chunk/s]
 72%|████████████████████████████           | 72/100 [00:01<00:00, 63.27chunk/s]
 79%|██████████████████████████████▊        | 79/100 [00:01<00:00, 61.93chunk/s]
 86%|█████████████████████████████████▌     | 86/100 [00:01<00:00, 62.13chunk/s]
 93%|████████████████████████████████████▎  | 93/100 [00:01<00:00, 62.21chunk/s]
100%|██████████████████████████████████████| 100/100 [00:01<00:00, 62.33chunk/s]
100%|██████████████████████████████████████| 100/100 [00:01<00:00, 66.16chunk/s]
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 4, 0, 0, 0 / 2500 transitions
liesel.goose.engine - INFO - Finished epoch

Parameter summary:

		kernel	mean	sd	q_0.05	q_0.5	q_0.95	sample_size	ess_bulk	ess_tail	rhat
parameter	index
\(\beta_{0,loc}\)	()	kernel_02	0.003	0.025	-0.037	0.002	0.045	10000	214.837	382.670	1.011
\(\beta_{lin(X)}\)	(0,)	kernel_03	-1.219	0.097	-1.376	-1.219	-1.059	10000	235.405	469.436	1.011
	(1,)	kernel_03	1.398	0.137	1.171	1.396	1.623	10000	347.217	718.748	1.006
\(\beta_{lin(X1)}\)	(0,)	kernel_04	0.104	0.095	-0.053	0.104	0.261	10000	393.226	657.114	1.029
	(1,)	kernel_04	1.016	0.186	0.714	1.014	1.324	10000	248.072	417.764	1.044
\(\beta_{ps(x0)}\)	(0,)	kernel_00	0.076	0.118	-0.115	0.077	0.264	10000	292.479	406.475	1.019
	(1,)	kernel_00	0.001	0.116	-0.195	0.004	0.183	10000	424.687	745.922	1.010
	(2,)	kernel_00	0.045	0.126	-0.164	0.046	0.249	10000	327.496	558.780	1.005
	(3,)	kernel_00	-0.009	0.106	-0.186	-0.007	0.159	10000	416.445	664.015	1.007
	(4,)	kernel_00	-0.147	0.102	-0.309	-0.149	0.022	10000	327.856	560.983	1.016
	(5,)	kernel_00	0.043	0.070	-0.072	0.042	0.156	10000	382.097	567.497	1.019
	(6,)	kernel_00	-0.358	0.048	-0.439	-0.357	-0.283	10000	327.511	546.265	1.017
	(7,)	kernel_00	-0.000	0.020	-0.034	-0.000	0.032	10000	389.357	519.426	1.009
	(8,)	kernel_00	-0.048	0.060	-0.142	-0.049	0.053	10000	325.519	570.110	1.019
\(\tau_{ps(x0)}^2\)	()	kernel_01	0.031	0.022	0.012	0.025	0.067	10000	1800.746	3162.994	1.002

Acceptance probabilities:

			acceptance_probability	position_moved
kernel	positions	phase
kernel_00	\(\beta_{ps(x0)}\)	posterior	0.821	0.817
		warmup	0.794	0.795
kernel_01	\(\tau_{ps(x0)}^2\)	posterior	1.000	1.000
		warmup	1.000	1.000
kernel_02	\(\beta_{0,loc}\)	posterior	0.884	0.884
		warmup	0.888	0.887
kernel_03	\(\beta_{lin(X)}\)	posterior	0.858	0.857
		warmup	0.793	0.789
kernel_04	\(\beta_{lin(X1)}\)	posterior	0.868	0.865
		warmup	0.794	0.794

Error summary:

					count	sample_size	sample_size_total	relative
kernel	positions	error_code	error_msg	phase
kernel_00	\(\beta_{ps(x0)}\)	90	nan acceptance prob	warmup	28	4000	4000	0.007
				posterior	0	10000	10000	0.000
kernel_03	\(\beta_{lin(X)}\)	90	nan acceptance prob	warmup	33	4000	4000	0.008
				posterior	0	10000	10000	0.000
kernel_04	\(\beta_{lin(X1)}\)	2	indefinite information matrix (fallback to identity)	warmup	1	4000	4000	0.000
				posterior	1	10000	10000	0.000
		90	nan acceptance prob	warmup	62	4000	4000	0.015
				posterior	0	10000	10000	0.000
		92	indefinite information matrix (fallback to identity) + nan acceptance prob	warmup	1	4000	4000	0.000
				posterior	3	10000	10000	0.000

The corresponding trace plots:

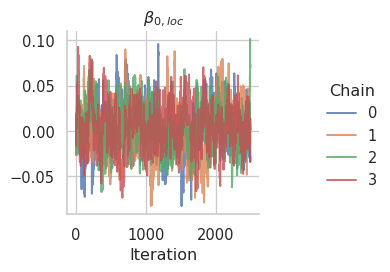

gs.plot_trace(results, loc.intercept.name)

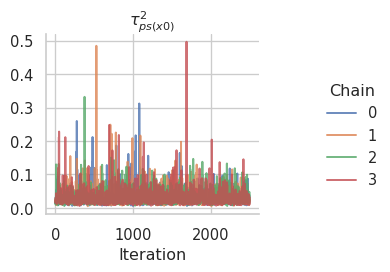

gs.plot_trace(results, loc_smooth_tau2_name)

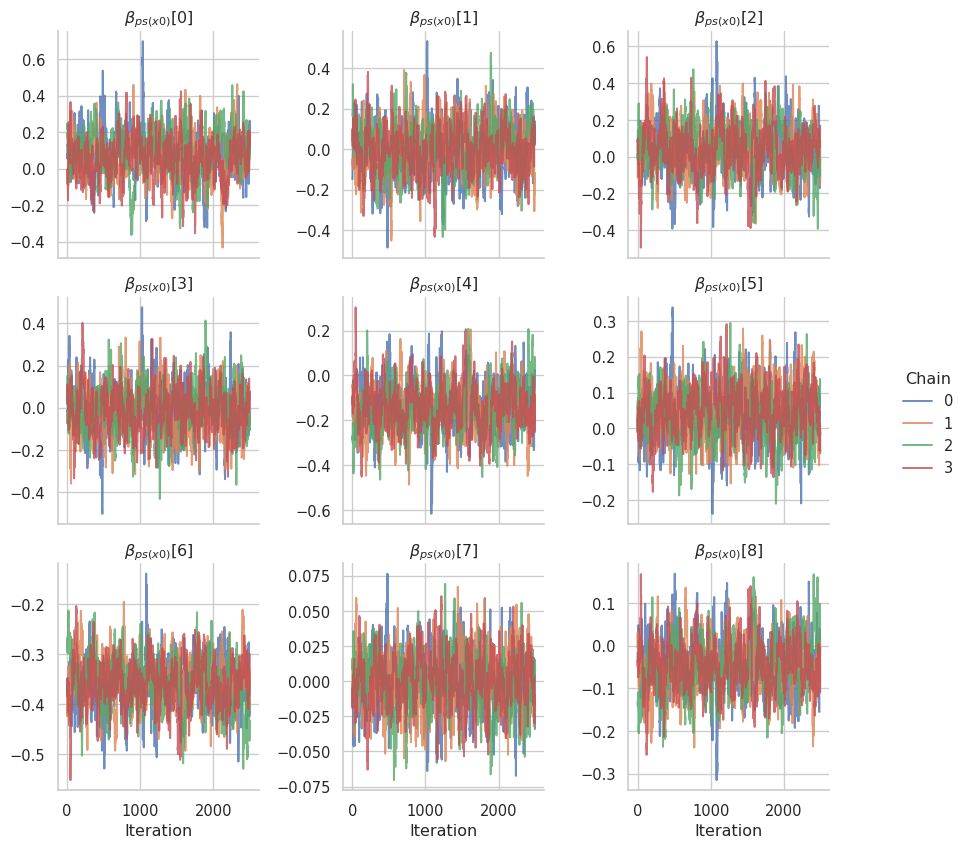

gs.plot_trace(results, loc_smooth.coef.name)

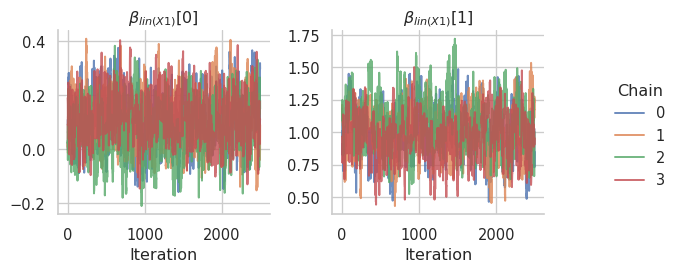

gs.plot_trace(results, scale_x1.coef.name)

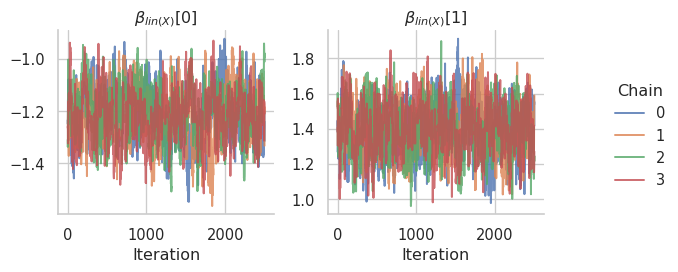

gs.plot_trace(results, concentration_x2.coef.name)

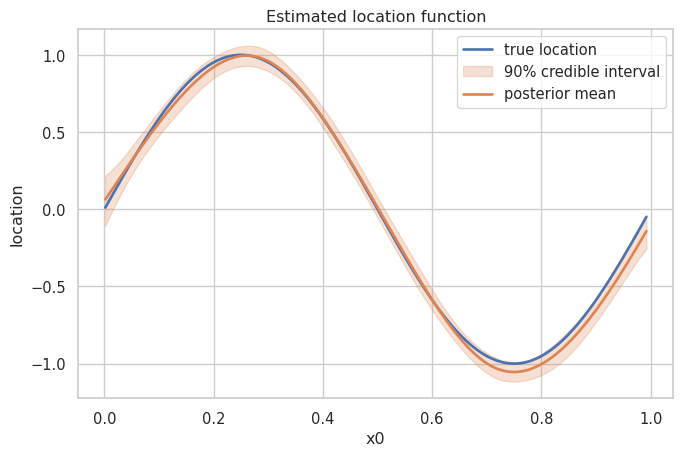

Finally, we can evaluate the posterior samples of the location predictor and compare the posterior mean with the true function used in the simulation.

samples = results.get_posterior_samples()
loc_samples = model.vars["loc"].predict(samples)
loc_summary = gs.SamplesSummary.from_array(
    loc_samples,
    name="loc",
    which=["mean", "quantiles"],
)
loc_summary_df = loc_summary.to_dataframe().reset_index()

loc_summary_df["x0"] = data["x0"].to_numpy()
loc_summary_df["true_loc"] = data["true_loc"].to_numpy()
loc_summary_df = loc_summary_df.sort_values("x0")

fig, ax = plt.subplots(figsize=(8, 5))
sns.lineplot(
    data=loc_summary_df,
    x="x0",
    y="true_loc",
    color=sns.color_palette()[0],
    linewidth=2,
    label="true location",
    ax=ax,
)
ax.fill_between(
    loc_summary_df["x0"],
    loc_summary_df["q_0.05"],
    loc_summary_df["q_0.95"],
    color=sns.color_palette()[1],
    alpha=0.25,
    label="90% credible interval",
)
sns.lineplot(
    data=loc_summary_df,
    x="x0",
    y="mean",
    color=sns.color_palette()[1],
    linewidth=2,
    label="posterior mean",
    ax=ax,
)

ax.set(xlabel="x0", ylabel="location", title="Estimated location function")
plt.show()
