GEV responses#
In this tutorial, we illustrate how to set up a distributional regression model with the generalized extreme value distribution as a response distribution. First, we simulate some data in R:
The location parameter (\(\mu\)) is a function of an intercept and a non-linear covariate effect.
The scale parameter (\(\sigma\)) is a function of an intercept and a linear effect and uses a log-link.
The shape or concentration parameter (\(\xi\)) is a function of an intercept and a linear effect.
After simulating the data, we can configure the model with a single call
to the rliesel::liesel() function.
library(rliesel)
Please make sure you are using a virtual or conda environment with Liesel installed, e.g. using `reticulate::use_virtualenv()` or `reticulate::use_condaenv()`. See `vignette("versions", "reticulate")`.
After setting the environment, check if the installed versions of RLiesel and Liesel are compatible with `check_liesel_version()`.
library(VGAM)
Loading required package: stats4
Loading required package: splines
set.seed(1337)
n <- 1000
x0 <- runif(n)
x1 <- runif(n)
x2 <- runif(n)
y <- rgev(
n,
location = 0 + sin(2 * pi * x0),
scale = exp(-3 + x1),
shape = 0.1 + x2
)
plot(y)
model <- liesel(
response = y,
distribution = "GeneralizedExtremeValue",
predictors = list(
loc = predictor(~ s(x0)),
scale = predictor(~ x1, inverse_link = "Exp"),
concentration = predictor(~ x2)
)
)
Installed Liesel version 0.2.4 is compatible.
Now, we can continue in Python and use the lsl.dist_reg_mcmc()
function to set up a sampling algorithm with IWLS kernels for the
regression coefficients (\(\boldsymbol{\beta}\)) and a Gibbs kernel for
the smoothing parameter (\(\tau^2\)) of the spline. Note that we need to
set \(\beta_0\) for \(\xi\) to 0.1 manually, because \(\xi = 0\) breaks the
sampler.
import liesel.model as lsl
import jax.numpy as jnp
model = r.model
# concentration == 0.0 seems to break the sampler
model.vars["concentration_p0_beta"].value = jnp.array([0.1, 0.0])
builder = lsl.dist_reg_mcmc(model, seed=42, num_chains=4)
builder.set_duration(warmup_duration=1000, posterior_duration=1000)
engine = builder.build()
liesel.goose.engine - INFO - Initializing kernels...
liesel.goose.engine - INFO - Done
engine.sample_all_epochs()
liesel.goose.engine - INFO - Starting epoch: FAST_ADAPTATION, 75 transitions, 25 jitted together
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 7, 12, 10, 4 / 75 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 1, 0, 0, 0 / 75 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 25 transitions, 25 jitted together
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 2, 1, 1, 3 / 25 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_01: 3, 1, 1, 0 / 25 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 0, 1, 1, 2 / 25 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 2, 1, 0, 1 / 25 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 50 transitions, 25 jitted together
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 2, 1, 3, 1 / 50 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_01: 1, 1, 1, 2 / 50 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 2, 1, 1, 2 / 50 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 0, 0, 1, 1 / 50 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 100 transitions, 25 jitted together
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 1, 2, 1, 3 / 100 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_01: 1, 1, 1, 2 / 100 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 1, 0, 1, 2 / 100 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 1, 1, 0, 1 / 100 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 200 transitions, 25 jitted together
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 1, 1, 1, 1 / 200 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_01: 1, 1, 1, 3 / 200 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 1, 1, 1, 2 / 200 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 3, 0, 1, 1 / 200 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: SLOW_ADAPTATION, 500 transitions, 25 jitted together
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 4, 3, 4, 1 / 500 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_01: 1, 2, 1, 1 / 500 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 1, 1, 1, 2 / 500 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 1, 1, 1, 1 / 500 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Starting epoch: FAST_ADAPTATION, 50 transitions, 25 jitted together
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 0, 1, 1, 1 / 50 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_01: 1, 2, 1, 0 / 50 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_03: 1, 1, 0, 1 / 50 transitions
liesel.goose.engine - WARNING - Errors per chain for kernel_04: 1, 0, 0, 1 / 50 transitions
liesel.goose.engine - INFO - Finished epoch
liesel.goose.engine - INFO - Finished warmup
liesel.goose.engine - INFO - Starting epoch: POSTERIOR, 1000 transitions, 25 jitted together
liesel.goose.engine - WARNING - Errors per chain for kernel_00: 1, 0, 0, 4 / 1000 transitions
liesel.goose.engine - INFO - Finished epoch
Some tabular summary statistics of the posterior samples:
import liesel.goose as gs
results = engine.get_results()
gs.Summary(results)
Parameter summary:
| kernel | mean | sd | q_0.05 | q_0.5 | q_0.95 | sample_size | ess_bulk | ess_tail | rhat | ||
|---|---|---|---|---|---|---|---|---|---|---|---|
| parameter | index | ||||||||||
| concentration_p0_beta | (0,) | kernel_00 | 0.068 | 0.051 | -0.015 | 0.068 | 0.153 | 4000 | 274.887 | 696.928 | 1.012 |
| (1,) | kernel_00 | 1.070 | 0.100 | 0.909 | 1.071 | 1.233 | 4000 | 136.495 | 550.203 | 1.020 | |
| loc_np0_beta | (0,) | kernel_03 | 0.598 | 0.226 | 0.228 | 0.596 | 0.972 | 4000 | 45.636 | 86.072 | 1.078 |
| (1,) | kernel_03 | 0.322 | 0.124 | 0.115 | 0.324 | 0.521 | 4000 | 96.395 | 249.120 | 1.052 | |
| (2,) | kernel_03 | -0.365 | 0.128 | -0.614 | -0.352 | -0.173 | 4000 | 46.097 | 69.378 | 1.082 | |
| (3,) | kernel_03 | 0.362 | 0.065 | 0.252 | 0.363 | 0.471 | 4000 | 62.370 | 152.229 | 1.053 | |
| (4,) | kernel_03 | -0.241 | 0.085 | -0.381 | -0.243 | -0.099 | 4000 | 54.831 | 159.130 | 1.097 | |
| (5,) | kernel_03 | 0.170 | 0.031 | 0.119 | 0.168 | 0.221 | 4000 | 35.365 | 145.434 | 1.119 | |
| (6,) | kernel_03 | 6.028 | 0.038 | 5.970 | 6.026 | 6.091 | 4000 | 72.399 | 260.400 | 1.032 | |
| (7,) | kernel_03 | 0.547 | 0.071 | 0.431 | 0.549 | 0.663 | 4000 | 34.101 | 190.253 | 1.124 | |
| (8,) | kernel_03 | 1.703 | 0.030 | 1.656 | 1.702 | 1.751 | 4000 | 69.504 | 213.189 | 1.034 | |
| loc_np0_tau2 | () | kernel_02 | 6.286 | 5.872 | 2.419 | 5.088 | 13.443 | 4000 | 3623.338 | 3754.696 | 1.000 |
| loc_p0_beta | (0,) | kernel_04 | 0.027 | 0.003 | 0.023 | 0.027 | 0.032 | 4000 | 76.520 | 49.237 | 1.059 |
| scale_p0_beta | (0,) | kernel_01 | -3.063 | 0.060 | -3.159 | -3.066 | -2.962 | 4000 | 84.772 | 150.819 | 1.045 |
| (1,) | kernel_01 | 1.041 | 0.076 | 0.915 | 1.043 | 1.165 | 4000 | 155.422 | 409.469 | 1.014 |
Error summary:
| count | relative | ||||
|---|---|---|---|---|---|
| kernel | error_code | error_msg | phase | ||
| kernel_00 | 90 | nan acceptance prob | warmup | 73 | 0.018 |
| posterior | 5 | 0.001 | |||
| kernel_01 | 90 | nan acceptance prob | warmup | 30 | 0.008 |
| posterior | 0 | 0.000 | |||
| kernel_03 | 90 | nan acceptance prob | warmup | 28 | 0.007 |
| posterior | 0 | 0.000 | |||
| kernel_04 | 90 | nan acceptance prob | warmup | 20 | 0.005 |
| posterior | 0 | 0.000 |
And the corresponding trace plots:

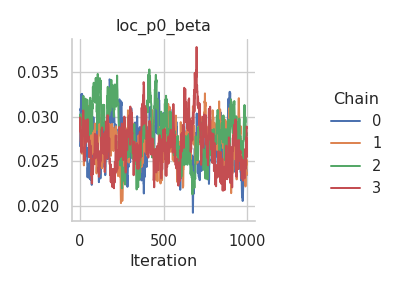

fig = gs.plot_trace(results, "loc_p0_beta")
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)

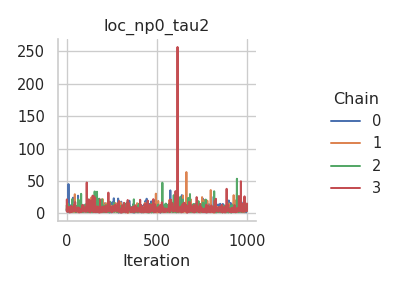

fig = gs.plot_trace(results, "loc_np0_tau2")
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)

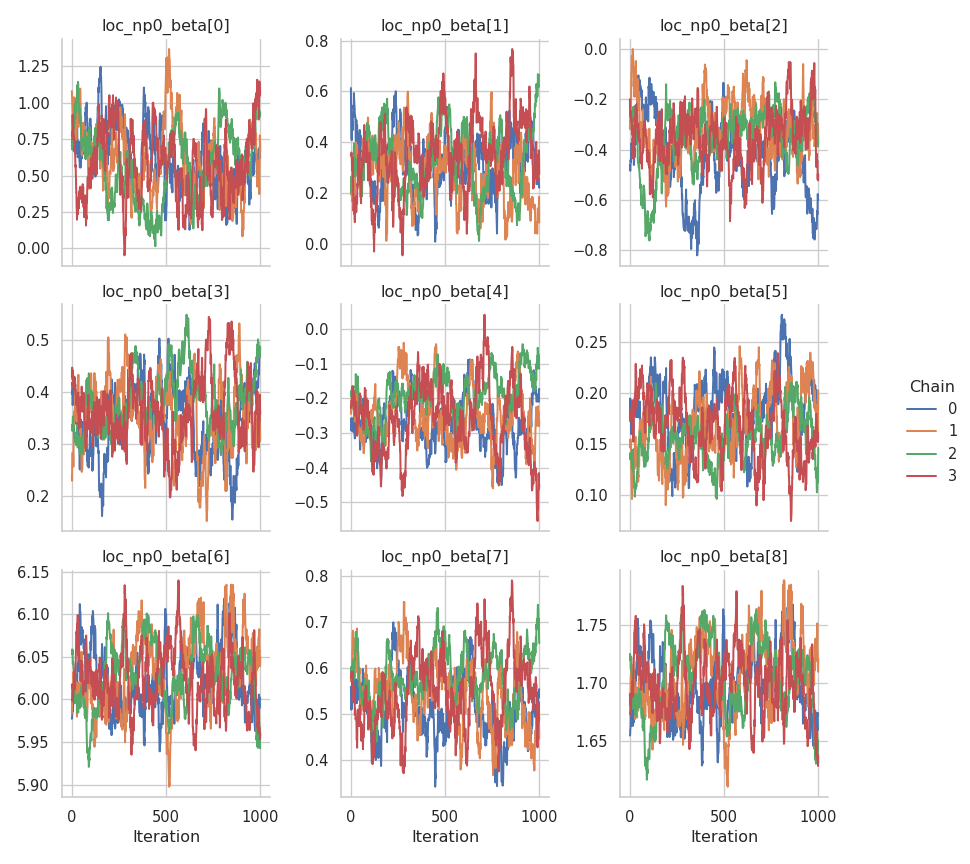

fig = gs.plot_trace(results, "loc_np0_beta")
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)

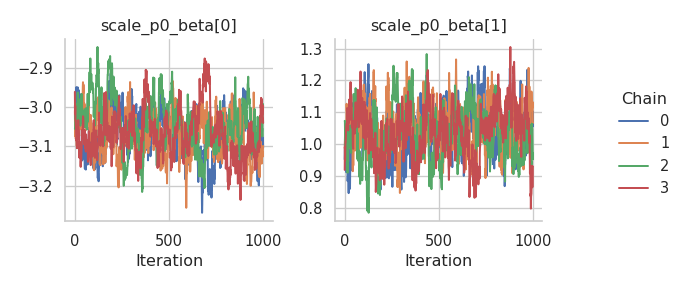

fig = gs.plot_trace(results, "scale_p0_beta")
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)

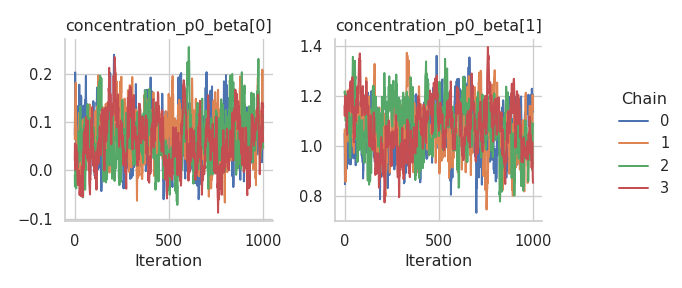

fig = gs.plot_trace(results, "concentration_p0_beta")
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)
/opt/hostedtoolcache/Python/3.10.12/x64/lib/python3.10/site-packages/seaborn/axisgrid.py:118: UserWarning: The figure layout has changed to tight
self._figure.tight_layout(*args, **kwargs)
We need to reset the index of the summary data frame before we can transfer it to R.
summary = gs.Summary(results).to_dataframe().reset_index()
After transferring the summary data frame to R, we can process it with packages like dplyr and ggplot2. Here is a visualization of the estimated spline vs. the true function:
library(dplyr)
Attaching package: 'dplyr'
The following objects are masked from 'package:stats':
filter, lag
The following objects are masked from 'package:base':
intersect, setdiff, setequal, union
library(ggplot2)
library(reticulate)
summary <- py$summary
beta <- summary %>%
filter(variable == "loc_np0_beta") %>%
group_by(var_index) %>%
summarize(mean = mean(mean)) %>%
ungroup()
beta <- beta$mean
X <- py_to_r(model$vars["loc_np0_X"]$value)
estimate <- X %*% beta
true <- sin(2 * pi * x0)
ggplot(data.frame(x0 = x0, estimate = estimate, true = true)) +
geom_line(aes(x0, estimate), color = palette()[2]) +
geom_line(aes(x0, true), color = palette()[4]) +

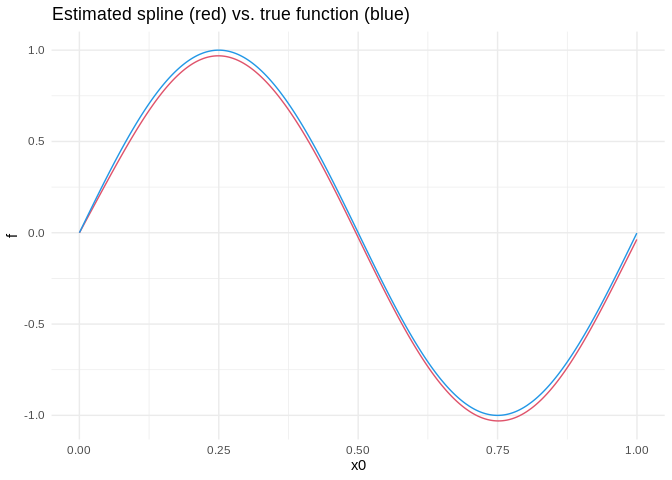

ggtitle("Estimated spline (red) vs. true function (blue)") +
ylab("f") +
theme_minimal()
